Straight Knife PCB depaneling machine, PCB singulation  - Pneumatically driven and electric control

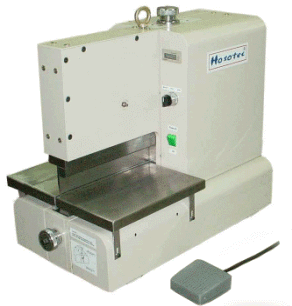

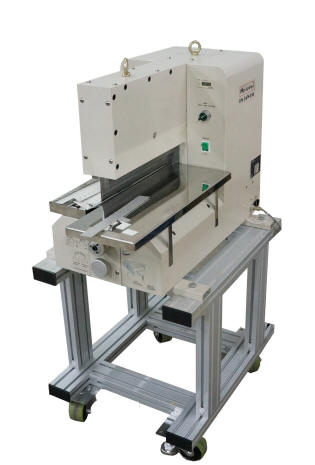

HS-JAW250, HS-JAW350







Operation video

(7M wma file, may need time to down load)



The machine is pneumatically driven and electric control. Build in 6 digits counter that convenient for counting the cuts.

The straight knife type depaneling machines were designed to depanel prescored panelboards carefully, without bending or tension stress. Even sensitive SMD-components like ceramic capacitors will not be damaged by the depaneling process.



Due to the special design of the knives also boards with high components placed close to the edges can be depaneled safely. Based on a proven method of depaneling, wedge-shaped knives are used to cut the panels within the groove. This enables boards of less than 1 mm thickness to be separated safely and without creating stress.

Features

No vibration during the process to prevent damage to precise PCB
Build in 7 digits counter that convenient for counting the cuts
★Gap for insertion of the board can easily be adjusted by means of the adjusting knob in the top side of the machine, low friction design is applied.

★ Lower knife height adjustable, the front and real portion can be adjusted separately. No thin plates are required after resharpening the knife.

★Operation and maintenance can be done also by unskilled personnel

Specification:

Power Voltage: 90~240VAC
Air pressure: 5Kgs/cm2
Effective length

            HS-JAW250  250mm, HS-JAW350 350MM
PCB thickness: 0.1~2.0(V-grooved PCB)
                        0.1~1mm (Without V-cut)

Weight: HS-JAW250  80kgs  HS-JAW350  145kgs



PCB Depaneling machine, PCB Separator. PCB singulation
Model
NTM 300 SL /NTM 375 SL

The separation of panelboards by bending or breaking causes
damage to single PCBs and/or to the components.

The NTM type depaneling machines were designed to depanel prescored panelboards carefully, without bending or tension stress. Even sensitive SMD-components like ceramic capacitors will not be damaged by the depaneling process.

Due to the special design of the knives also boards with high components
placed close to the edges can be depaneled safely. Based on a
proven method of depaneling, wedge-shaped knives are used to
cut the panels within the groove. This enables boards of less than
1 mm thickness to be separated safely and without creating stress.

The machine is pneumatically driven using standard parts. It is
very quiet with none of the usual compressed air noises.

A new, improved technique of depaneling using an infinitely variable
sectional cut reduces the tension stress during the depaneling of
prescored boards to the minimum.

Compared to other depaneling systems the new machines of the
SL-series have the following advantages:

★Noiseless operation

★Gap for insertion of the board can easily be adjusted by
means of the adjusting knob in the front of the machine

★Integrated waste suction prepared

★Depaneling process without vibrations

★Easy-to-service design

★Pneumatically driven (FESTO)

★Operation and maintenance can be done also by unskilled personnel

★High power margin

★Pneumatic control placed in a separate unit for easier maintenance
