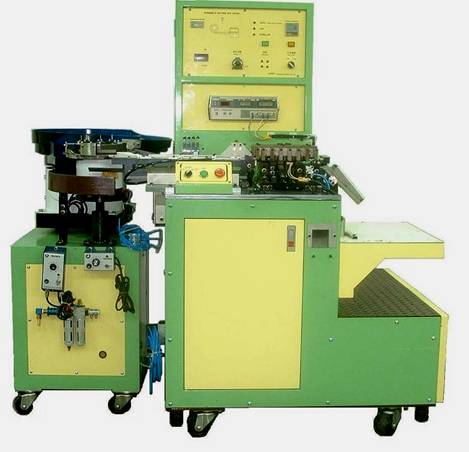

Loose radial high speed automatic forming M/C CF200/CF90 |
|

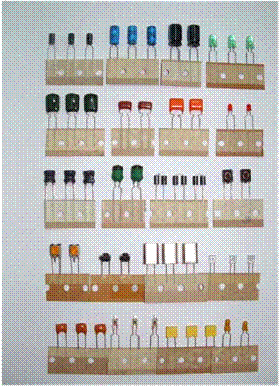

| Features: 1. Parts Feeder (Vibrator) à Lead Straightening à Forming à Testing à NG Rejection à Lead Cutting à 2nd Forming à Counting à Collection. 2. Two Dimensional Forming, i.e. Left-Right and Front-Rear. 3. Fully automatic, High productivity, High quality。 4. Cam Driven Mechanism, Stable and Durable. 5. Inverter Controlled Speed Adjustment. 6. PLC Control System. 7. Easy Operation and Maintenance. Tester Interface Ready, Tester Optional. | Applicable Components | CF 200 | CF 90 | Medium/Small Capacitors Ø4~Ø10 | Large Size Capacitors Ø13~Ø18 | Medium/Small Film Capacitors | Large Size Film Capacitors | Medium/Small Passive Components | Large Size Passive Components | Lead Length >= 2.5 mm | Lead Length >= 4.0 mm | Specification | Model | CF 200 | CF 90 | Power | AC220V, 3Ø, 50/60 Hz | AC220V, 3Ø, 50/60 Hz | Air | Air 4~5 Kg / cm2 | Air 4~5 Kg / cm2 | Speed | 150 ~ 200 pcs / min | 40 ~ 90 pcs / min | Size | 1400L*875W*1370H(mm) | 1690L*875W*1370H(mm) |

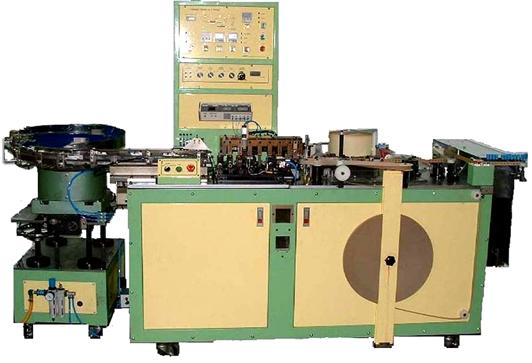

Large size loose radial high speed automatic forming taping M/C TPC-90 |
|

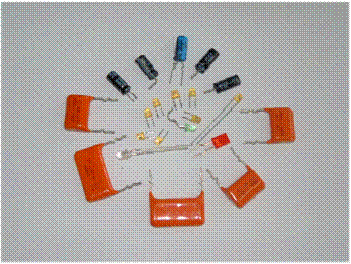

| Features: l Taping Pitch 15, 25.4, 30 mm. l Forming Pitch 7.5, 10, 15, 22.5 mm. l Forming Style: Straight, Bend in / out. l Cam driven forming, stable & accurate. l Long Lasting Mechanical Parts. l PLC Control System, Easy Operations. l Inverter Speed Control. l User Friendly Status Display. | Applicable Components | Large Size loose Radial Components | Specification | Model | TPC-90 | Power | AC220V,3Ø,50/60Hz,1.6KW | Air | 4~5 Kg / cm2 | Speed | 40 ~ 90 pcs / min adjustable | Size | W2500 * L780W * H1600(mm) | Weight | 1,000kgs |
Loose radial high speed automatic forming taping M/C TPC-200 |
|
| Features: l Taping Pitch 12.7 mm. l Forming Pitch 2.5 ~ 7.5 mm. l Forming Style: Straight, Bend in / out. l Cam driven forming, stable & accurate. l Long Lasting Mechanical Parts. l PLC Control System, Easy Operations. l Inverter Speed Control. l User Friendly Status Display. | Applicable Components | Small/Medium loose Radial Components | Specification | Model | TPC 200 | Power | AC220V,3Ø,50/60Hz,1.6KW | Air | 4~5 Kg / cm2 | Speed | 150 ~ 210 pcs / min adjustable | Size | W2600 * L780W * H1600(mm) | Weight | 800kgs |
|
