Taped axial lead bender/cutter
Bending and cutting the
taped axial lead components in efficiency and economical way
HS-301-U HS-80
Axial forming
HS-301-F HS-80F
for vertical mount
HS-301-S HS-80S Slim forming wheel

|
HS-201-U

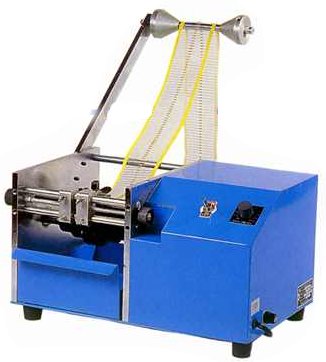

HS-82 Motorized taped Axial forming
HS-201-W HS-82W Enhanced motor
for wire lead up to1.3m
|
|
Model |
HS-301U
HS-80 HS-201U
HS-82 |
HS-301F
HS-80F HS-201F
HS-80F |
HS-301S
HS-80S
HS-201S
HS-82S |
Lead Pitch |
6-40mm |
|
5-40mm |
Lead length |
3.6-15mm |
|
3.6-15mm |
Shoulder Height |
1.2mm（Min.） |
4.0mm（Min.） |
0.6mm（Min.) |
Body |
1.5-8.0mm |
1.5-8.0mm |
1.5-8.0mm |
Lead Height |
|
25.0mm （Max,） |
|
Wire dia |
Ø0.35-1.0mm |
Ø0.35-1.0mm |
Ø0.35-0.8mm |
Lead distance |
|
2.5-13.5mm |
|
Capacity |
40000, 84000/Hour |
25000, 40000/Hour |
40000, 84000/Hour |
|
